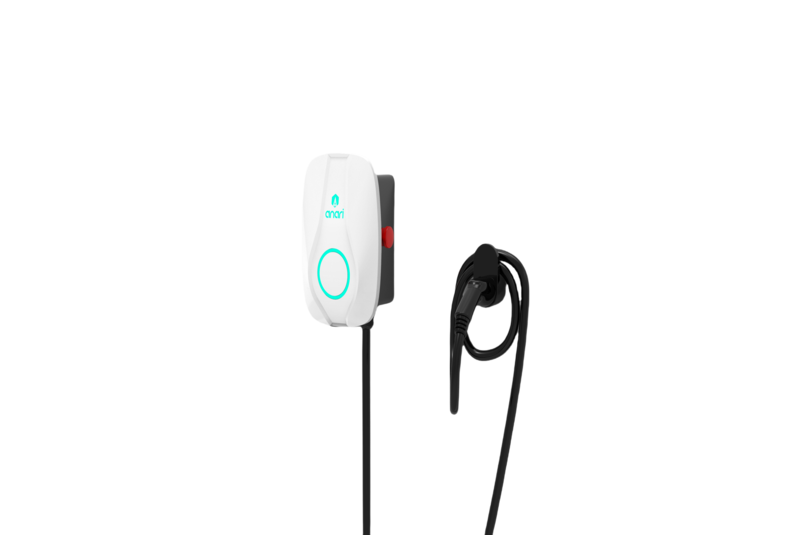

AC WallBox Plug&Play 7.4kW Manufacturer

Set A Consultation Today

Message*

Specification

Reviews

Commercial EV Charger Solutions

Elegant Design Aesthetics

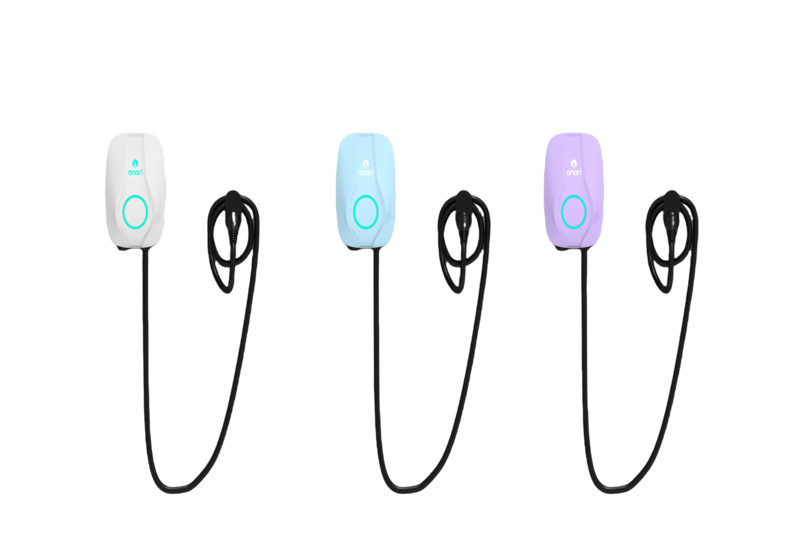

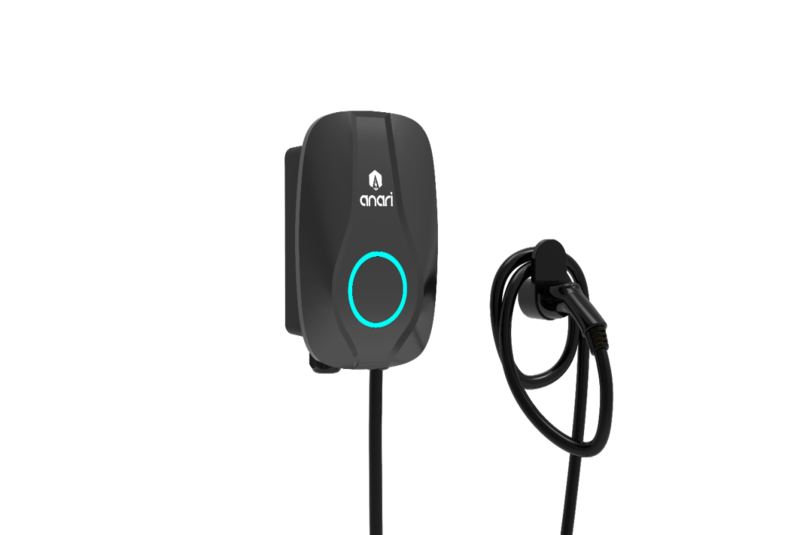

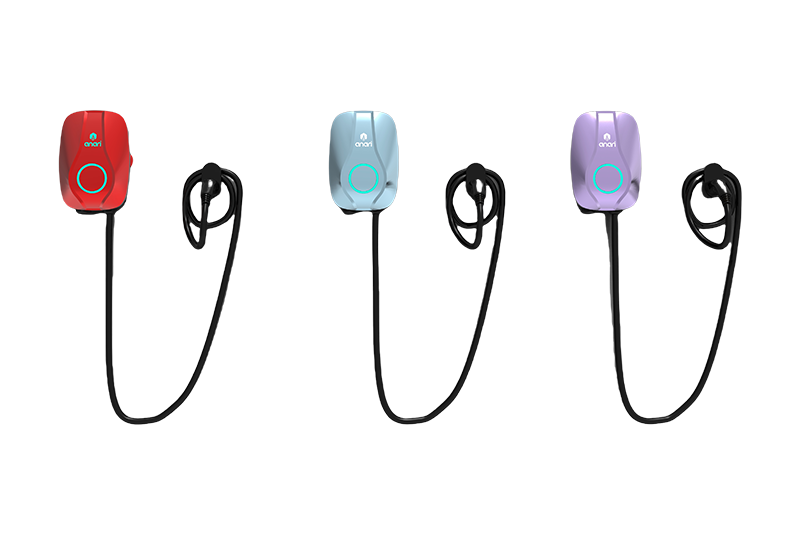

The appearance is stylish and simple, available in black and light blue. Plug and Play is the best choice for home charging.

User-friendly Installation

Compact design style, with a volume of nearly 4.94 liters and a weight of less than 3 kilograms, very easy to install.

Multiple Protection Measures

Ingress Protection can reach lp55 (gun head lp67), and multiple power protection designs to ensure your charging safety.

3 Years Warranty

Provide a 3-year warranty service and 24/7 instant response service to ensure that users have no worries.

AC WallBox Plug&Play 7.4kW Specifications

Model		Tiber 7
Input	Input voltage	110~240VAC
Input	Rated Frequency	50/60Hz
Output	Maximum Current	32A
Output	Maximum Power	7kW
System	Charging Connector	Type 2 or GB/T Cable
	Cable Length	5m
	Housing Material	PC + ABS
	RFID Reader	ISO 14443A / ISO 14443B
	Authorization Mode	Plug & Charge （RFID card Option）
Protection	Ingress Protection	IP55（gun head IP67）
	Protection	Over Current Protection, Residual Current Protection, Ground Protection, Surge Protection, Over/Under Voltage Protection, Over Temperature Protection, Relay Welding Detection;
	Leakage Protection	AC + DC 6mA
	Withstand voltage	1500VAC
	Certification Standard	CE/ IEC61851, IEC 62196, ISO 15118-3, DIN70121, DIN70122, GBT20234, GB/T18487, GB/T27930, NBT33008, NBT33002
	Warranty	3 years
Environment	Relative Humidity	5% - 95% RH
	Working temperature	-30℃-50℃
	Cooling	Natural convection
	Operating Altitude	<2000m
	Package Dimension(W×H×D)	166mm240mm124mm
	Net Weight	4.5 kg

EV Charging Station FAQ

What benefits do businesses gain by installing a commercial EV charging station?

Installing a commercial EV charging station can attract new customers and boost revenue through hourly or daily charging plans. Additionally, many local authorities offer tax incentives, such as electricity rate discounts or installation fee reimbursements, to offset costs.

What’s the main difference between DC and AC EV charging?

DC chargers charge a battery to 80% in about 30 minutes, while AC chargers take longer. DC is faster but more expensive, ideal for high-demand scenarios. AC is more economical, suited for routine charging.

Are commercial EV chargers compatible with all types of connectors?

Yes, Anari’s commercial EV chargers support international standards, including CCS 1 (North America), CHAdeMO (Japan), and CCS 2 (Europe), ensuring broad usability across regions and vehicle types.

How do Anari charging stations perform in various weather conditions?

Anari charging stations are optimized for all weather conditions, with temperature control and circuit protection to ensure reliable performance, protecting internal components from voltage spikes or extreme temperatures.

Service Overview

·After-Sales Service: Free installation guidance and troubleshooting. Free parts provided within the warranty period.

·Customization: Design, samples, and packaging tailored to client specifications.

·Warranty: Standard 2-year warranty.
