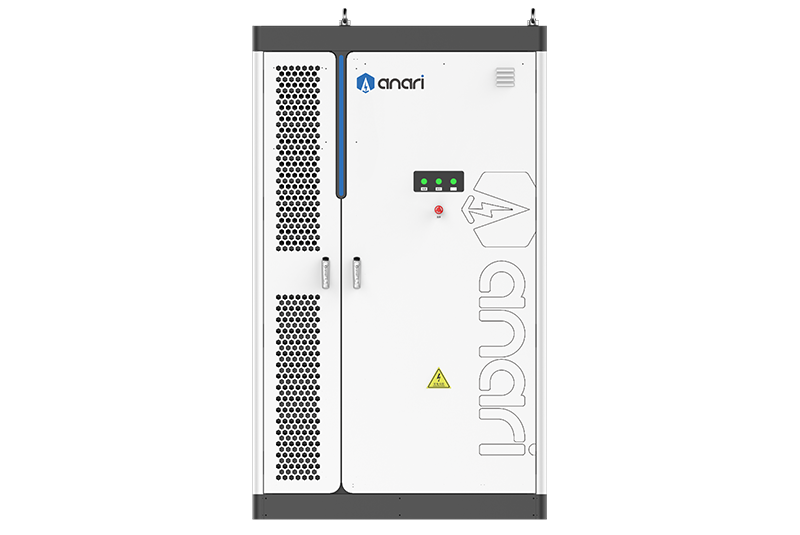

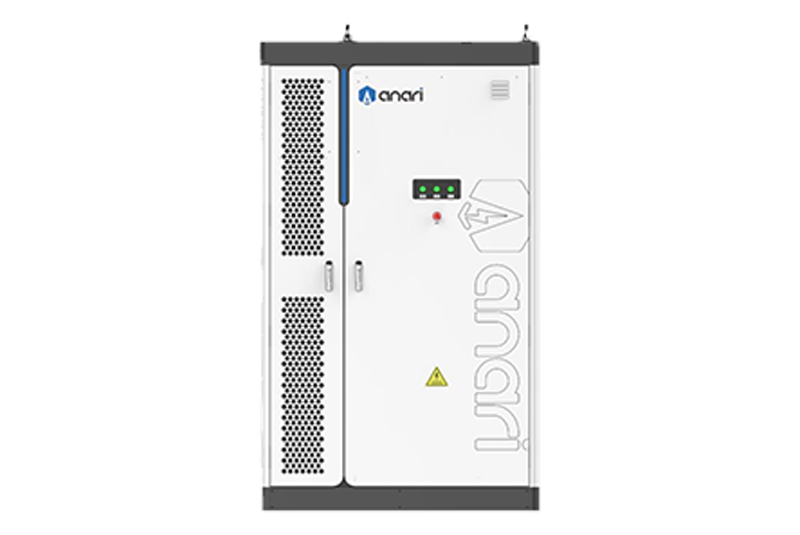

The ARK-E 418 energy block adopts a modular unit design, with AC 690V output, and can be directly paralleled on the AC side for capacity expansion, achieving a building-block-style, highly efficient, and safe design from 100 kWh energy storage units to GWh energy storage power stations. Each energy block has a consistent appearance and unified style. Modularization design reduces the risks associated with product failures and allows for flexible capacity configuration. This product is widely used in application scenarios such as large-scale source-grid side power stations, large-scale industrial and commercial power stations, and grid-forming energy storage power stations.
Ultra-compact with big DC power in a small package. Compared to other DC chargers, Pales DC Series has the lowest installation costs, meaning a faster ROI due to reduced capital savings for the site operator.
Featuring OCPP 1.6J compliance and seamless CMS integration via Ethernet, 4G, or Wi-Fi. Supports flexible authentication through mobile app, RFID, or plug-and-charge, alongside cashless payment options including contactless POS terminals.
Offering comprehensively customizable EV chargers expertly tailored precisely to your unique specifications through professional OEM/ODM services.
Equipped with overvoltage/overload protection and IP54-rated enclosure for reliable operation. Enables real-time monitoring, dynamic load management, and seamless energy system integration through an intuitive UI.
|
AC TERMINAL DATA |
AC Rated Power |
209kW |
|
Rated Voltage Range |
690V(-15%~10%) |
|
|
Maximum AC Power |
251kw |
|
|
PowerFactor |
>0.99 |
|
|
AC Current Distortion Rrate |
<3% |
|
|
Rated Grid Frequency |
50Hz |
|
|
Grid Type |
IT 690V |
|
|
DC TERMINAL DATA |
Battery Cell Type |
LFP314Ah |
|
Battery Voltage Range |
1165～1498V |
|
|
Battery PACK Configuration |
52.2kWh |
|
|
Number of Temperature Detections |
248 |
|
|
Battery System Configuration |
418kWh |
|
|
DC Protection |
Contactor+FUSE |
|
|
MECHANICAL PARAMETER |
Dimensions (W*H*D) |
1400mm*2350mm*1300mm |
|
Total Weight(Kg) |
3800 |
|
|
Installation Method |
Floor Installation |
After-Sales Service: Free installation guidance and troubleshooting for Pales DC Series Chargers (60kW–360kW). Free parts replacement within the warranty period.
Customization: Tailored design, samples, and packaging for Pales DC Series Chargers to meet client specifications.
Warranty: Standard 2-year warranty.
