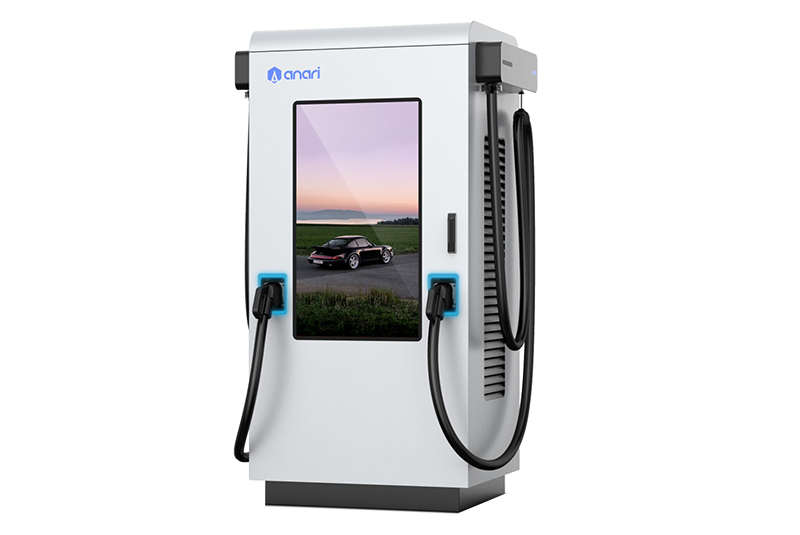

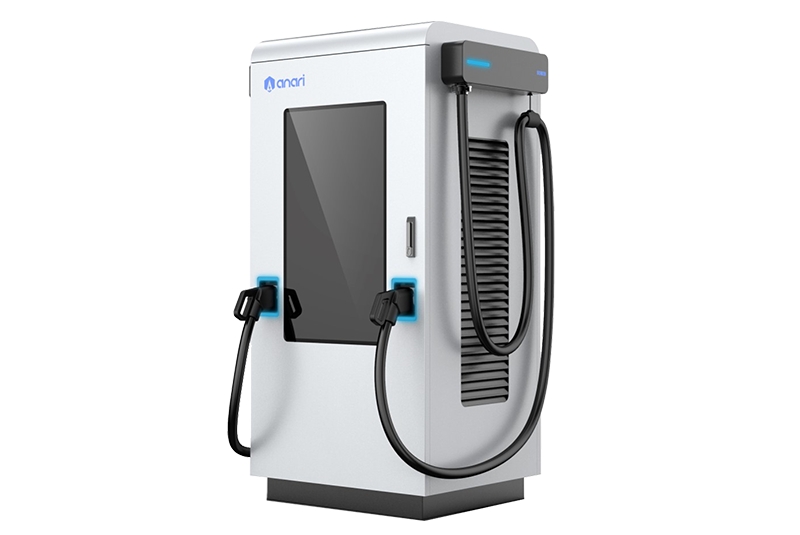

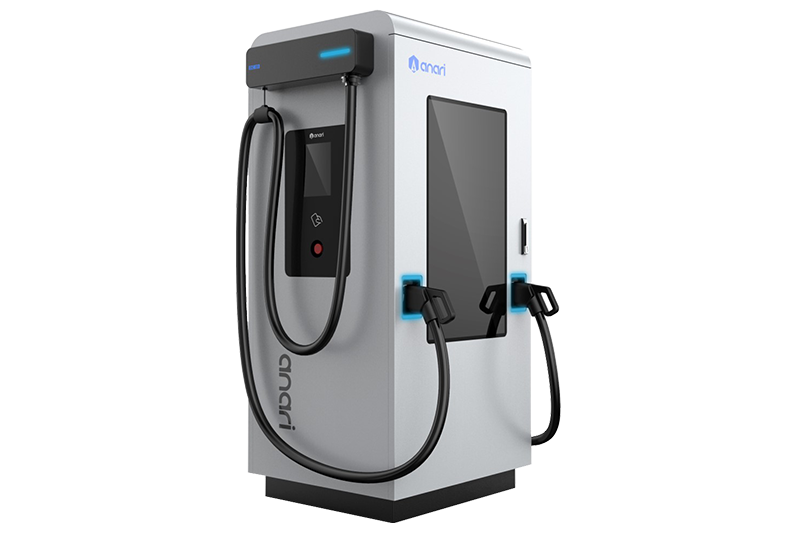

Super fast charging up to 240kW, supported charging modes are CCS1, CCS2, GB/T, CHAdeMO | Mode 4, with 2 Connectors with CCS1/2 or GB/T or CHAdeMO.
Its 43-inch ad screen targets EV owners and strategically places ads, boosting revenue via advertising exposure plus order commissions
Offering comprehensively customizable EV chargers expertly tailored precisely to your unique specifications through professional OEM/ODM services.
Comply with CE certification standards, guaranteeing safety, quality, and regulatory adherence,multi-language support and active data saving during power loss.
|
DC Output |
Charging mode |
CCS1 & CCS2 & GB/T& CHAdeMO | Mode 4 |
|
Output power |
60~240kW |
|
|
Output voltage |
DC: 200~1000VDC |
|
|
Output current |
CCS1/ 2 200A, CHAdeMO 125A, GB/T 250A |
|
|
Cable length |
5m (8m and 10m optional) |
|
|
Number of connectors |
2 Connectors with CCS1/2 or GB/T or CHAdeMO |
|
|
Peak efficiency |
≥96% at normal output power |
|
|
AC Input |
Earthing system |
3P+N+PE |
|
Input voltage |
400VAC±10% |
|
|
Input frequency |
50/60Hz |
|
|
Power factor |
≥0.99 |
|
|
THDi |
≤5% |
|
|
Stable Voltage Accuracy |
≤±0.5% |
|
|
Stable Current Accuracy |
≤±1% |
|
|
General characteristics |
IP and lk rating |
lp54, lk08 |
|
Operating altitude |
≤2000m |
|
|
Operating temperature range |
-30℃~+70°C(Power output reduces once Temp higher than 55 °C) |
|
|
Operating humidity range |
Relative Humidity 5%~95% |
|
|
Storage temperature range |
-40℃~+70℃ |
|
|
Mounting |
Floor Standing |
|
|
Cooling type |
Forced air cooling |
|
|
Dimensions (H* W* D) |
/ |
|
|
User Interface |
Status indication |
LED /LCD /APP |
|
Screen type |
7-inch HD Touch Screen |
|
|
Connectivity |
4G, Ethernet |
|
|
User authentication |
APP, RFID (ISO/IEC 14443 A/B, ISO/EC 15693, Mifare1 RFlD reader).Credit card(POS Terminal is optional) |
|
|
Communication Protocol |
OCPP1.6J |
|
|
Firmware upgrade |
Firmware upgrade way |
OTA |
|
Certificationand standards |
Safety and Compliance |
CE/IEC 61851, IEC 62196, ISO15118-3, DIN70121, DIN70122, CHAdeMO1.2, GBT20234, GB/T18487, GB/T27930, NBT33008, NBT33002 |
|
Certification |
CE |
|
|
Protection |
Safety design |
Over voltage protection, under voltage protection, overload protection, short circuit protection, leakage protection, grounding protection, over temperature protection, low temperature protection, lightning protection |
|
Warranty |
2 Years |
|
After-Sales Service: Free installation guidance and troubleshooting for Aquila DC Series Chargers (60kW–360kW). Free parts replacement within the warranty period.
Customization: Tailored design, samples, and packaging for Aquila DC Series Chargers to meet client specifications.
Warranty: Standard 2-year warranty.
