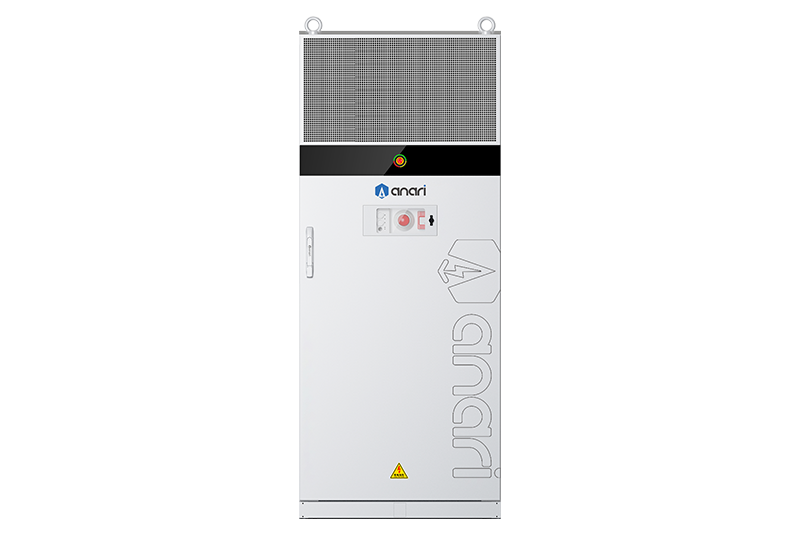

The ARK-E 261 energy block adopts a modular design, highly integrating systems such as battery PACK, battery management, AC/DC conversion, thermal management, fire protection, and intelligent control to form an integrated energy storage solution. It has advantages such as high energy density, small footprint, high system efficiency, and multiple safety protections. It does not require foundation excavation, significantly reducing construction costs, and can be quickly deployed and operated stably. It is widely used in various scenarios such as peak shaving and valley filling in industry and commerce, virtual power plants, backup power supplies, and three-phase unbalance management.
Battery module-level fire protection, cabinet partition safety isolation, AI health management, 3S control and protection integration.
Storage depth 100%, AC-side conversion efficiency >90%, flexible deployment, elastic expansion.
Weak connection support, three-phase imbalance management, efficient AGC/AVC scheduling, and grid-connected/isolated mode switching
BCS comprehensive and all-round monitoring, modular design improves operation and maintenance efficiency, and cloud analysis significantly reduces operation and maintenance costs.
|
SYSTEM DATA
|
Maximum System Efficiency |
≥90% |
|
Charge-discharge Rate |
≤0.5P |
|
|
Operating Temperature |
-35℃~55℃ |
|
|
Depth of Discharge |
100%DOD |
|
|
Installation Position |
Outdoor |
|
|
Access Method |
Grid-Connected/Grid-Connected and Off-Grid |
|
|
Noise |
≤70dB |
|
|
Maximum Number of Cycles |
≥10000 |
|
|
Altitude |
≤2000m |
|
|
Charge-Discharge Switching Time |
<50ms |
|
|
Communication Interface |
LAN |
|
|
Fire Protection System |
Perfluorohexanone + Cluster-Level Water Fire Protection Interface + Active Early Warning |
|
|
System Protection Level (battery compartment) |
IP55 |
|
|
Operating Humidity |
0%RH ～ 95%RH （No condensation） |
|
|
Thermal Management Methods |
Liquid Cooling |
|
|
Communication Protocol |
ModbusIEC 104IEC 61850MQTT |
|
|
Certification |
GB/T 36276-2023、GB/T 34120-2023, GB/T 34131-2023 |
|
|
AC TERMINAL DATA |
AC Rated Power |
131kW |
|
Rated Voltage Range |
400V(-15%~10%) |
|
|
Power Factor |
-1~1 |
|
|
AC Current Distortion Rrate |
<3% |
|
|
Rated Grid Frequency |
50Hz |
|
|
Grid Type |
TN 400V |
|
|
DC TERMINAL DATA |
Battery Cell Type |
LFP 3.2V/314Ah |
|
Battery Grouping Method |
260S1P |
|
|
Battery Capacity |
261kWh |
|
|
Battery Voltage Range |
728~936V |
|
|
Number of Temperature Detections |
155 |
|
|
DC Protection |
Contactor+FUSE |
|
|
MECHANICAL PARAMETER |
Dimensions (W*H*D) |
1000mm*2400mm*1350mm |
|
Total Weight(Kg) |
≤2800 |
|
|
Installation Method |
Floor Installation |
