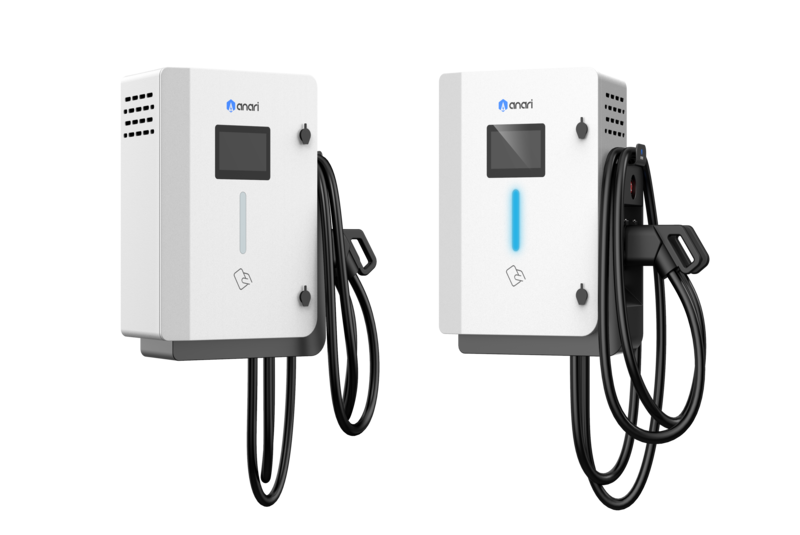

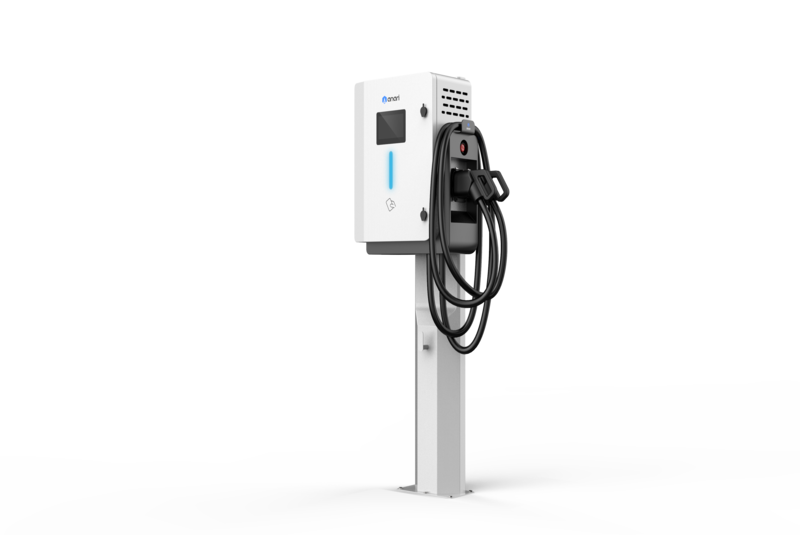

Castor DC Series is a representative of the "small DC" in the Anari DC series of products. Compared with traditional DC charging station, it occupies less space, is lighter in weight, and is convenient for disassembly and installation. There are two installation scenarios for it: one can be directly installed on the wall, and the other can be installed on a column, meeting both home and commercial use scenarios, which is very suitable for operators with limited site area.
These chargers support Europe CCS1. Targeted anchoring to the European market can meet 90% of the car charging needs.
DC Wallbox Chargers provide compact, high-capacity wall/floor-mounted solutions for residential/commercial use, ensuring efficient power delivery and global grid compliance.
DC Wallbox 20kW/30kW/40kW are alternative compatible. The chargers cover plug and play, RFID Card or APP, support Wifi/Ethernet/4G, equipped with a 5" LCD touch screen.
Weatherproof enclosure rated for indoor or outdoor installation, includes a 5M(CCS2) charging cable to easily reach your EV.
| DC Output | Charging mode | CCS2 or GB/T |
| Output power | 20/30/40kW | |
| Output voltage | DC: 200~1000VDC | |
| Cable length | 5m (8m and 10m optional) | |
| Number of connectors | 20kW single Connector, 30/40kW 2 Connectors | |
| Peak efficiency | ≥96% at normal output power | |
| AC Input | Earthing system | 3P+N+PE |
| Input voltage & Current | AC380V±20% | |
| Input frequency | 45~65Hz | |
| Power factor | ≥0.99 | |
| THDi | ≤5% | |
| Stable Voltage Accuracy | ≤±0.5% | |
| Stable Current Accuracy | ≤±1% | |
| General characteristics | IP and IK rating | Ip54, Ik08 |
| Operating altitude | ≤2000m | |
| Operating temperature range | -30℃~+70℃ (Power output reduce once Temp higher than 55 ℃) | |
| Operating humidity range | Relative humidity 5%~95% | |
| Storage temperature range | -40℃~+70℃ | |
| Cooling type | Forced air cooling | |
| Dimensions (H * W * D) | 710mm*620mm*350mm | |
| User Interface | Status indication | LED/LCD/APP |
| Screen type | 7-inch HD Touch Screen | |
| Connectivity | Ethernet | |
| User authentication | APP, RFID (ISO/IEC 14443 A/B, ISO/IEC 15693, Mifare1 RFID reader), Credit Card(POS Terminal is optional) | |
| Communication Protocol | OCPP1.6J | |
| Firmware upgrade | Firmware upgrade way | OTA |
| Certification and standards | Safety and Compliance | CE/ IEC61851, IEC 62196, ISO 15118-3, DIN70121, DIN70122, CHAdeMO 1.2, GBT20234, GB/T18487, GB/T27930, NBT33008, NBT33002 |
| Certification | CE | |
| Protection | Safety design | Over voltage protection, under voltage protection, overload protection, short circuit protection, leakage protection, grounding protection, over temperature protection, low temperature protection, lightning protection |
| Warranty | 2 Years | |
After-Sales Service:Free installation guidance and troubleshooting for Castor DC Series Chargers (20kW, 30kW, 40kW). Free parts replacement within the warranty period.
Customization: Tailored design, samples, and packaging for Castor DC Series Chargers to meet client specifications.
Warranty: Standard 2-year warranty.
