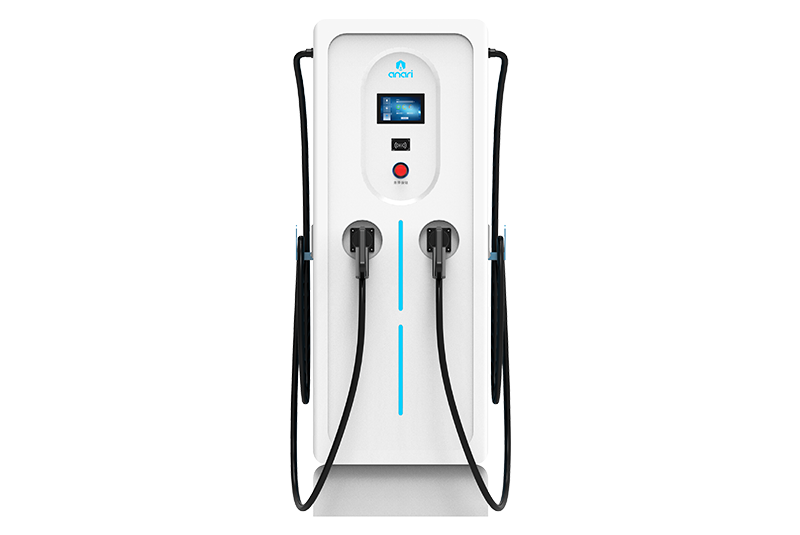

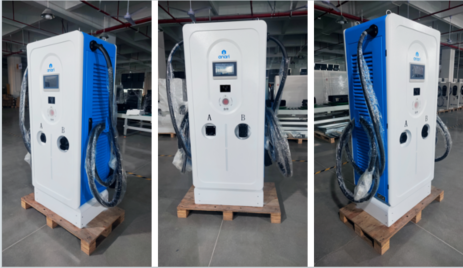

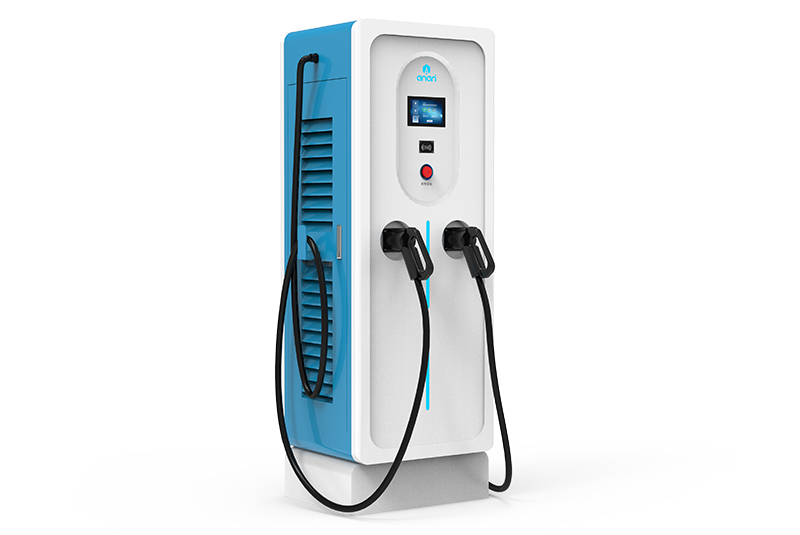

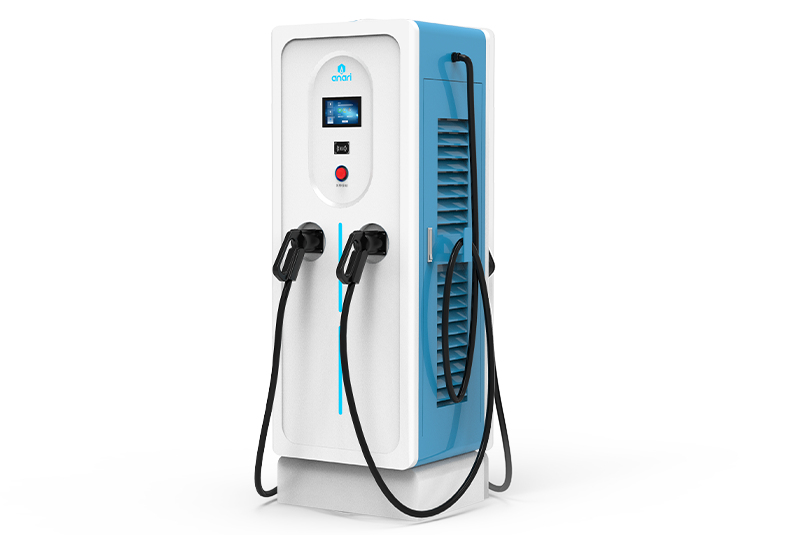

The Pales DC Series is a sincere creation of Anari Energy and also one of our highly cost-effective products. Its design inspiration stems from the expansion of Anari's brand color, which extends to "ink blue" to form its main color scheme. This charging station can be regarded as a "sister model" to the Vulco DC Series, with a maximum single-gun power output of 240kW.
Ultra-compact with big DC power in a small package. Compared to other DC chargers, Pales DC Series has the lowest installation costs, meaning a faster ROI due to reduced capital savings for the site operator.
Featuring OCPP 1.6J compliance and seamless CMS integration via Ethernet, 4G, or Wi-Fi. Supports flexible authentication through mobile app, RFID, or plug-and-charge, alongside cashless payment options including contactless POS terminals.
Offering comprehensively customizable EV chargers expertly tailored precisely to your unique specifications through professional OEM/ODM services.
Equipped with overvoltage/overload protection and IP54-rated enclosure for reliable operation. Enables real-time monitoring, dynamic load management, and seamless energy system integration through an intuitive UI.
| DC Output | Charging Mode | CCS1 & CCS2 & GB/T & CHAdeMO | Mode 4 |
| Output Power | 60kW~240kW | |
| Output Voltage | DC: 200~1000VDC | |
| Output Current | CCS1/2: 200A, CHAdeMO: 125A, GB/T: 250A | |
| Cable Length | 5m (8m and 10m optional) | |
| Number of Connectors | 2 Connectors (CCS1/2, GB/T, CHAdeMO) | |
| Peak Efficiency | ≥96% at normal output power | |
| AC Input | Earthing System | 3P+N+PE |
| Input Voltage | AC380V±20% | |
| Input Frequency | 45~65Hz | |
| Power Factor | ≥0.99 | |
| THDi | ≤5% | |
| Stable Voltage Accuracy | ≤±0.5% | |
| Stable Current Accuracy | ≤±1% | |
| General Characteristics | IP and IK Rating | Ip54, Ik08 |
| Operating Altitude | ≤2000m | |
| Operating Temperature Range | -30℃~+70℃ (Power output reduces when temperature exceeds 50℃) | |
| Operating Humidity Range | 5%~95% | |
| Storage Temperature Range | -40℃~+70℃ | |
| Mounting | Floor Standing | |
| Cooling Type | Forced air cooling | |
| Dimensions (H * W * D) | —— | |
| User Interface | Status Indication | LED/LCD/APP |
| Screen Type | 7-inch HD Touch Screen | |
| Connectivity | 4G, Ethernet | |
| User Authentication | APP, RFID (ISO/IEC 14443 A/B, ISO/IEC 15693, Mifare1 RFID), Credit Card (optional) | |
| Communication Protocol | OCPP1.6J | |
| Firmware Upgrade | Firmware Upgrade Way | OTA |
| Protection | Safety Design | Over voltage protection, under voltage protection, overload protection, short circuit protection, leakage protection, grounding protection, over temperature protection, low temperature protection, lightning protection |
| Warranty | 2 Years |
After-Sales Service: Free installation guidance and troubleshooting for Pales DC Series Chargers (60kW–360kW). Free parts replacement within the warranty period.
Customization: Tailored design, samples, and packaging for Pales DC Series Chargers to meet client specifications.
Warranty: Standard 2-year warranty.
