3.5-7kW Portable AC EV Charger
- 3.5-7kW
- Type 2, GB/T
- IP55 and IP67
Product Features
-
Works with Almost EVs
Charge over 99% of EVs on the market, up to 10000 charging cycles. -
Easy Installation
Portable and easy to operate, equipped with a 5-meter cable and clear LCD display. -
Suitable for All Weather Condition
Built with PC + ABS housing and IP55 protection((Connector head IP67)) -
Security
RFID-based authorization for added security
Product Description

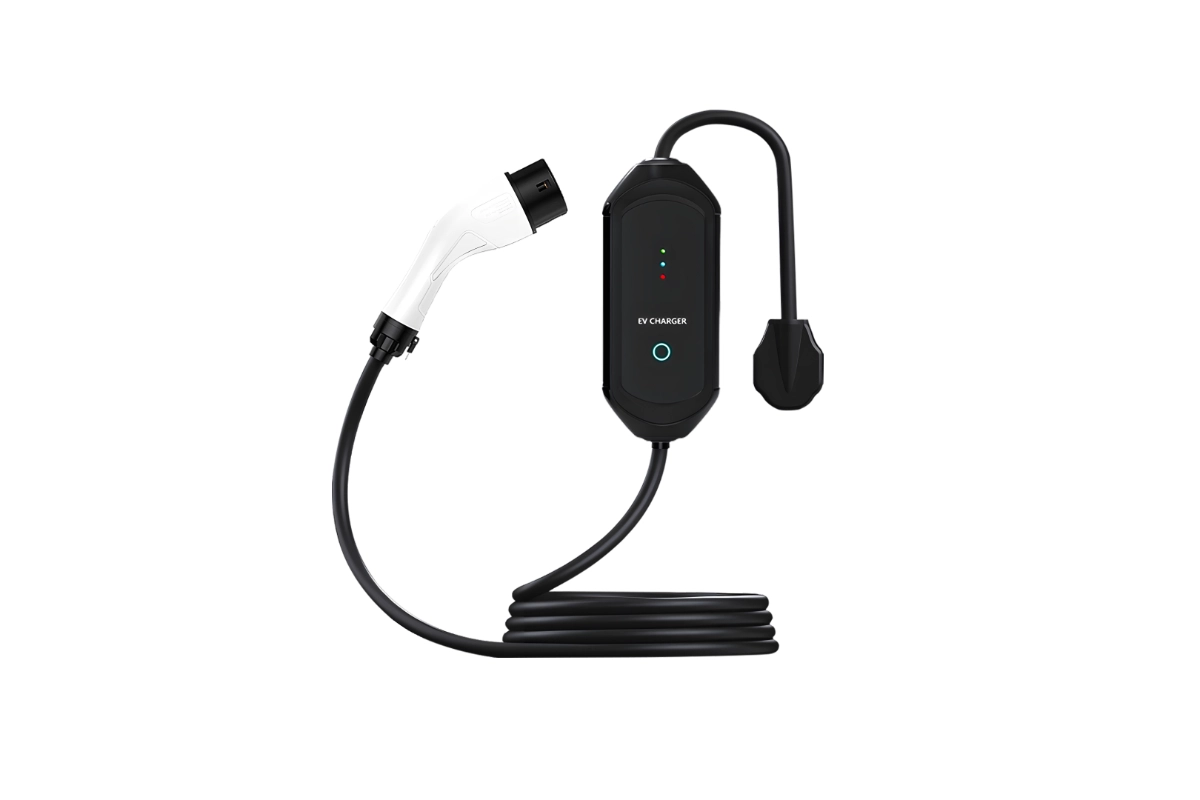

3.5-7kW Portable AC EV Chargers are reliable, durable, and offer flexible charging solutions for home or on-the-go use. It is lightweight, compact, occupies a small footprint, compatible with Type2 and GB/T plugs, they allow charging rate control via a mobile app or scheduling through the charger’s control box. Supporting 3.5kW and 7kW with adaptable adapters, Anari Energy provides OEM and ODM customization for diverse charging needs.
Specifications
| Model | Model Sene 3.5kW | Model Sene 7kW | |
| Input | Input Voltage | 230VAC ± 10% | |
| Rated Frequency | 50/60Hz | ||
| Output | Maximum Current | 16A | 32A |
| Maximum Power | 3.5kW | 7kW | |
| System | Charging Connector | Type 2, GB/T | |
| Cable Length | 5m | ||
| Housing Material | PC + ABS | ||
| Screen & Indicator | / | 128*64 dots LCD | |
| RFID Reader | ISO 14443A / ISO 14443B | ||
| Authorization Mode | Plug & Charge | Plug & Charge, RFID | |
| Protection | Ingress Protection | IP55 (Connector head IP67) | |
| Protection Features | Over Current, Residual Current, Ground Protection, Surge Protection, Over/Under Voltage, Over Temperature, Relay Welding Detection | ||
| Leakage Protection | A + DC 6mA | ||
| Withstand Voltage | 1500VAC | ||
| Certification Standard | IEC-62196-1, IEC-62196-2, IEC-61851-1, IEC-62752 | ||
| Warranty | 2 years | ||
| Environment | Relative Humidity | 5% – 85% RH | |
| Working Temperature | -30℃-45℃ | ||
| Cooling | Natural convection | ||
| Operating Altitude | <2000m | ||
| Package | Dimension (W×H×D) | 106mm * 246mm * 70mm | |
| Net Weight | 2.4~2.8 kg | ||
FAQ
-
Q: What power ratings are available for your AC EV chargers?
A: Our AC EV chargers are available in a wide range of power outputs, typically from 3.5 kW to 22 kW, to accommodate various charging requirements and installation scenarios. We also offer customization options to meet specific project and customer needs.
-
Q: How can I obtain pricing and detailed information about your AC EV chargers?
A: You can learn more about our AC EV chargers through the following channels:
1. Visit our official website – Browse the relevant AC charger product pages to access detailed product information, technical specifications, and features. Product brochures and catalogs can also be downloaded from our website.
2. Contact our sales team – Reach out to our sales representatives for the latest pricing, product recommendations, and tailored solutions. Simply share your project requirements, and our team will respond promptly with the most suitable options.
-
Q: Have your AC EV chargers been deployed in my country?
A: Yes. Our AC EV chargers have been successfully deployed in more than 20 countries and regions across Europe, South America, Asia, and Africa. With extensive international project experience, we serve a wide range of market applications and customer requirements. For specific references or information about deployments in your country, please contact our sales team.
-
Q: Which international standards and certifications do your AC EV chargers comply with?
A: Our AC EV chargers are designed and manufactured in compliance with internationally recognized standards and certifications, including IEC standards, CE certification, Type 2 and GB/T charging standards, OCPP protocols, and other applicable industry requirements. Compliance may vary by model and target market.
-
Q: Can I verify whether your AC EV chargers meet the standards and regulations in my country or region?
A: Absolutely. Our AC EV chargers are developed to meet the regulatory and technical requirements of major global markets. If your country or project requires specific certifications, standards, or compliance documentation, please contact our sales team. We will be pleased to provide the necessary technical support and certification information to help ensure compliance with local requirements.
